对应用部署App Mesh

创建 Mesh 对象

为namespace添加App Mesh 相关的标签，并部署 Mesh 对象：

kubectl apply -f deployment/mesh.yaml

namespace/prodcatalog-ns configured
mesh.appmesh.k8s.aws/prodcatalog-mesh created

确认 Mesh 对象和 Namespace 已创建：

kubectl describe namespace prodcatalog-ns
Name:         prodcatalog-ns
Labels:       appmesh.k8s.aws/sidecarInjectorWebhook=enabled
            gateway=ingress-gw
            mesh=prodcatalog-mesh
Annotations:  Status:  Active

kubectl describe mesh prodcatalog-mesh
Status:
Conditions:
    Last Transition Time:  2020-11-02T16:43:03Z
    Status:                True
    Type:                  MeshActive

为服务创建 App Mesh 资源

kubectl apply -f deployment/meshed_app.yaml

virtualnode.appmesh.k8s.aws/prodcatalog created
virtualservice.appmesh.k8s.aws/prodcatalog created
virtualservice.appmesh.k8s.aws/proddetail created
virtualrouter.appmesh.k8s.aws/proddetail-router created
virtualrouter.appmesh.k8s.aws/prodcatalog-router created
virtualnode.appmesh.k8s.aws/proddetail-v1 created
virtualnode.appmesh.k8s.aws/frontend-node created
virtualservice.appmesh.k8s.aws/frontend-node created

获取应用服务的所有 Meshed 资源，您应该会看到以下结果：

kubectl get virtualnode,virtualservice,virtualrouter -n prodcatalog-ns

NAME                                        ARN                                                                                                     AGE
virtualnode.appmesh.k8s.aws/frontend-node   arn:aws:appmesh:us-west-2:$ACCOUNT_ID:mesh/prodcatalog-mesh/virtualNode/frontend-node_prodcatalog-ns   3m4s
virtualnode.appmesh.k8s.aws/prodcatalog     arn:aws:appmesh:us-west-2:$ACCOUNT_ID:mesh/prodcatalog-mesh/virtualNode/prodcatalog_prodcatalog-ns     35m
virtualnode.appmesh.k8s.aws/proddetail-v1   arn:aws:appmesh:us-west-2:$ACCOUNT_ID:mesh/prodcatalog-mesh/virtualNode/proddetail-v1_prodcatalog-ns   35m

NAME                                           ARN                                                                                                                          AGE
virtualservice.appmesh.k8s.aws/frontend-node   arn:aws:appmesh:us-west-2:$ACCOUNT_ID:mesh/prodcatalog-mesh/virtualService/frontend-node.prodcatalog-ns.svc.cluster.local   3m4s
virtualservice.appmesh.k8s.aws/prodcatalog     arn:aws:appmesh:us-west-2:$ACCOUNT_ID:mesh/prodcatalog-mesh/virtualService/prodcatalog.prodcatalog-ns.svc.cluster.local     35m
virtualservice.appmesh.k8s.aws/proddetail      arn:aws:appmesh:us-west-2:$ACCOUNT_ID:mesh/prodcatalog-mesh/virtualService/proddetail.prodcatalog-ns.svc.cluster.local      35m

NAME                                               ARN                                                                                                            AGE
virtualrouter.appmesh.k8s.aws/prodcatalog-router   arn:aws:appmesh:us-west-2:$ACCOUNT_ID:mesh/prodcatalog-mesh/virtualRouter/prodcatalog-router_prodcatalog-ns   35m
virtualrouter.appmesh.k8s.aws/proddetail-router    arn:aws:appmesh:us-west-2:$ACCOUNT_ID:mesh/prodcatalog-mesh/virtualRouter/proddetail-router_prodcatalog-ns    35m

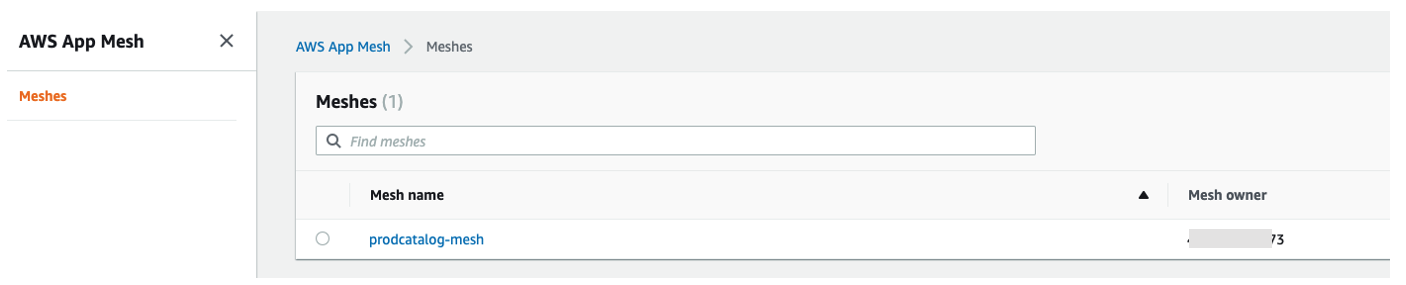

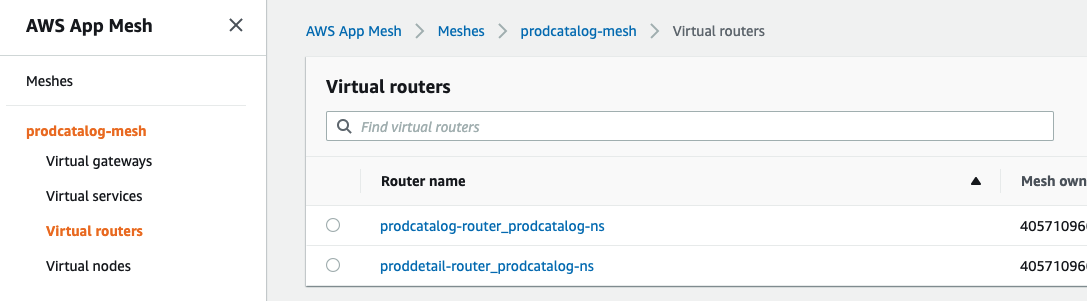

进入 Console 并查看 App Mesh Resources 信息

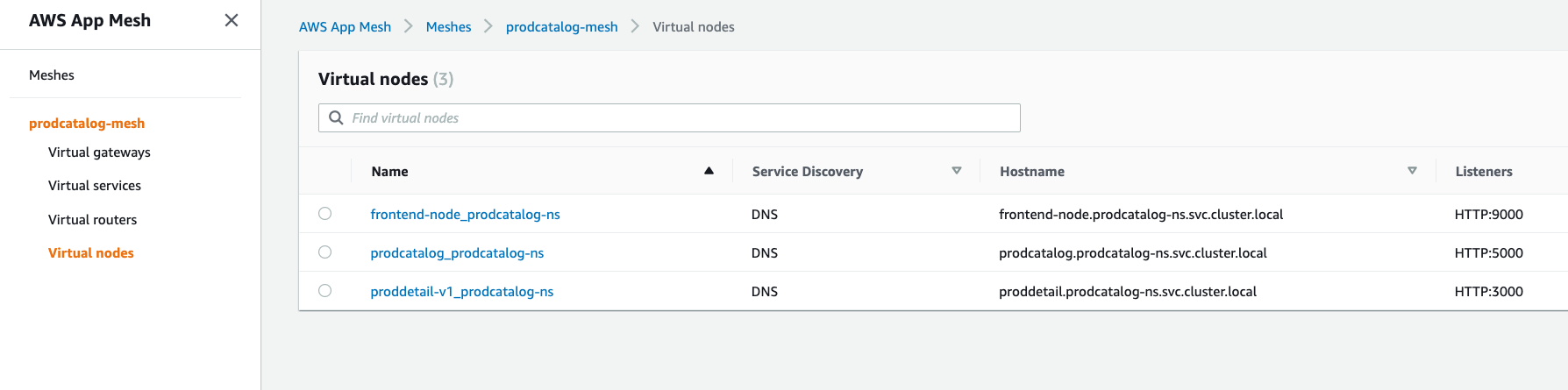

virtual nodes img image-20210714204208344
